Troubleshooting
CCTV Problem?
7 Common Issues
– Fixed.
Black screen, blurry footage, night vision failure, no signal – these 7 problems cover 90% of all CCTV complaints. Try this guide before calling a technician – aksar aap khud fix kar sakte ho.
90% of the support calls we receive trace back to these same 7 problems. And in at least 60% of cases, the fix is something you can do yourself – no technician, no new parts. You just need to look in the right place.
Each problem below includes the exact causes and a numbered step-by-step fix. Start from the top, work your way down – you’ll find your answer.
7 Problems – Jump to Your Issue
- Black Screen / No Image – Camera not showing at all
- Blurry / Unclear Footage – Everything looks fuzzy
- Night Vision Not Working – Fine in day, black at night
- Wavy / Noisy Picture – Lines appearing on screen
- No Signal on One Camera – Others working fine
- DVR / NVR Not Recording – Live view works but no playback
- CCTV Not Showing on Mobile – App says offline
The 7 Problems – And Their Fixes
01
Symptom: Camera channel is completely black on DVR/NVR screen – either always black or goes black randomly.
Common Causes
- Camera not receiving power – power supply failed or loose connection at the camera end
- Coaxial or CAT6 connector loose at the DVR port – common after vibration or movement
- Camera physically damaged – especially after heavy rain or a power surge
- DVR channel setting mismatch – analog camera assigned to IP channel or vice versa
- CCA cable connector oxidised – especially after monsoon season in outdoor installations
Step-by-Step Fix
- Go to the camera physically and check if the power LED is on. No LED means no power reaching the camera.
- At the DVR back panel, unplug the affected cable connector and firmly re-plug it – loose connection is the most common quick fix.
- Plug a known working camera into the same DVR channel. If image appears, the original camera is faulty. If still black, the issue is the cable or DVR port.
- Check DVR channel settings – confirm the camera type (Analog/HD/IP) matches what’s actually connected.
- Test the power adapter with a multimeter – output voltage should be within the specified range.
Cable Angle
If the connector keeps coming loose or looks oxidised at the joint – yeh aksar CCA cable ka symptom hai. Pure copper connectors and cables maintain a reliable connection over time without oxidation issues.02
Symptom: Image is visible but blurry, out of focus, or missing detail. Face or license plate cannot be identified clearly.
Common Causes
- Dust, spider web, or moisture on the camera lens – very common in outdoor cameras
- Varifocal camera was not focused properly at installation time
- Camera resolution and DVR output resolution are mismatched
- Lens cover scratched or cracked – after hailstorm or physical impact
- IR reflection from a white wall or shiny surface too close to the camera
Step-by-Step Fix
- Clean the camera lens with a soft microfiber cloth – gentle circular motion, no pressure. This alone fixes the problem in 40% of blurry footage cases.
- For varifocal cameras, adjust the focus ring behind the lens until the image is sharp on the DVR monitor.
- Check DVR settings – camera resolution and DVR channel resolution should match. Mismatch causes soft, degraded output.
- Angle the camera slightly away from direct white walls or reflective surfaces to eliminate IR washout.
- If the lens cover is physically cracked, only the lens cover needs replacing – not the whole camera.
03
Symptom: Daytime picture is fine. At night the image goes completely black or drops to very poor quality. IR LEDs don’t appear to be activating.
Common Causes
- Camera not receiving full power – IR LEDs draw significant additional current at night
- IR LEDs have burned out – common in older cameras after 3-4 years
- Day/Night mode set to “Day” manually in DVR/NVR settings instead of “Auto”
- An object in front of the camera is reflecting IR light back into the lens
- Voltage drop on long power cable runs – thin or CCA cable struggles under IR load
Step-by-Step Fix
- Check camera settings – set Day/Night mode to “Auto.” If left on manual “Day,” IR will never activate regardless of ambient light.
- Cover the light sensor temporarily to simulate darkness and confirm whether IR LEDs actually turn on.
- Check power supply voltage under load – should not drop more than 10% when IR activates.
- If a white wall or reflective surface is directly in front of the camera, the IR bounces back and washes out the image. Adjust the camera angle.
- If IR LEDs are completely dead, camera replacement is the practical fix – repair is rarely cost-effective.
Cable Angle
Voltage drop on long power runs becomes most noticeable at night when IR LEDs add significant load. Pure copper power cable with correct gauge prevents this – CCA cable struggles under the combined current draw.04
Symptom: Screen pe horizontal lines, wavy distortion, color shifting, ya random noise/static. Kabhi kabhi theek hota hai, kabhi kharab.
Common Causes
- CCA coaxial cable – sabse common cause, especially 50m+ runs pe
- Coaxial cable power line ke paas se guzar rahi hai – electromagnetic interference
- Ground loop issue – multiple devices different power points se connected hain
- Connector loose ya poorly crimped – especially outdoor junctions pe
- Cable kisi jagah physically damaged hai – bend, pinch, ya animal bite
Step-by-Step Fix
- Cable route check karo – power cables ke parallel run hai to minimum 30cm gap rakho ya perpendicular cross karo
- Sabhi connectors firmly tight hain ya nahi check karo – BNC connectors finger tight se zyada nahi
- DVR aur camera ek hi power strip se run karo – ground loop often fix ho jaata hai
- Cable visually inspect karo entire route pe – koi sharp bend, pinch point, ya damage visible hai kya
- Agar CCA cable hai aur run 50m+ hai – replace karna hi permanent fix hai, workaround kaam nahi karega
Cable Angle
Wavy picture jo barish mein worse ho jaaye aur garmi mein theek ho – yeh almost always CCA cable ka symptom hai. Metal expands in heat, contracts in cold – CCA ka resistance accordingly shift karta hai. Pure copper mein yeh problem nahi hoti.05
Symptom: 4 cameras mein se 3 theek hain. Ek pe “No Signal” ya “Video Loss” show ho raha hai. DVR channel dikh raha hai lekin camera feed nahi.
Common Causes
- Usi camera ki power supply fail ho gayi ya fuse gaya
- Cable connector DVR ke peeche se loose ho gaya
- Cable kisi jagah cut ya damaged ho gayi – construction, rodent, ya weather
- Camera ka video output fail ho gaya internally
- DVR port fail – rare but possible after lightning surge
Step-by-Step Fix
- DVR ke peeche affected camera ka cable unplug karo – ek working camera ka cable usi port pe lagao. Image aaye to DVR port theek hai.
- Affected camera ko kisi working port pe connect karo – image aaye to camera theek hai, cable ya original port issue hai
- Camera ke paas jaao – power LED check karo. Power nahi hai to power supply ya power cable issue hai
- Cable physically trace karo camera se DVR tak – koi visible damage hai kya – cut, crush, ya exposed wire
- Sab theek lag raha hai phir bhi signal nahi – cable tester se continuity test karo
06
Symptom: Live view dikh raha hai cameras ka lekin playback mein footage nahi milti. Ya DVR “HDD Error” ya “No HDD” show kar raha hai.
Common Causes
- HDD full ho gayi – overwrite setting off hai to naya footage save nahi hoga
- HDD fail ho gayi – frequent power cuts se hard drive corrupt hoti hai
- DVR mein recording schedule set nahi tha – default “manual” pe tha
- HDD DVR ke saath compatible nahi hai – surveillance grade HDD chahiye
- SATA cable loose hai DVR ke andar – HDD detect nahi ho rahi
Step-by-Step Fix
- DVR main menu mein Storage – HDD Management open karo. HDD status “Normal” hai ya error show ho raha hai?
- Recording Schedule check karo – “All Day” aur “Continuous” set karo. Manual mode pe recording tabhi hoti hai jab manually start karo.
- Overwrite setting “On” karo – isse purani footage automatically overwrite hoti rahegi jab HDD full ho
- HDD format karo DVR settings se – agar pehle kisi aur DVR mein use hui hai to format zaroori hai
- Agar HDD detect hi nahi ho rahi – DVR band karo, HDD SATA cable tighten karo, restart karo
Prevention Tip
Frequent power cuts DVR ko hard shutdown karte hain jo HDD ko corrupt karta hai over time. UPS lagao DVR ke liye – yeh sabse common HDD failure cause hai aur completely preventable hai.07
Symptom: DVR pe sab theek hai locally lekin phone app pe “Device Offline”, “Connection Failed”, ya blank screen aata hai.
Common Causes
- DVR ka internet connection gaya – router restart hone se IP address change ho gaya
- App mein DVR ka IP address outdated hai – DHCP se IP change ho jaata hai
- Router pe port forwarding band ho gayi – ISP ya router reset ke baad
- DVR ki date/time galat hai – certificate mismatch se connection fail hoti hai
- Mobile data pe work karta hai lekin WiFi pe nahi – router firewall block kar raha hai
Step-by-Step Fix
- DVR ko router se LAN cable se connect karo aur DVR settings mein current IP address note karo – app mein yahi update karo
- DVR ko static IP assign karo – yeh best permanent fix hai taaki har router restart pe IP change na ho
- P2P/Cloud connection use karo agar available hai – router settings ki zaroorat nahi padti, seedha cloud se connect hota hai
- DVR ki date aur time check karo – correct timezone aur time set karo
- Router restart karo aur dobara try karo – simple fix jo aksar kaam karta hai
Quick Diagnosis – Ek Nazar Mein
Problem identify nahi ho rahi? Yeh table seedha problem number tak le jaayegi.
| Aap Kya Dekh Rahe Ho | Most Likely Problem | Fix |
|---|---|---|
| Poori screen black | Power ya cable issue | Problem #1 |
| Image hai par dhundla | Lens dirty ya out of focus | Problem #2 |
| Din theek, raat kharab | IR / Night vision issue | Problem #3 |
| Lines ya waves screen pe | Cable interference / CCA | Problem #4 |
| Ek camera off, baaki theek | Single camera / cable fault | Problem #5 |
| Live theek, playback nahi | HDD / recording setting | Problem #6 |
| Phone pe nahi dikh raha | Network / IP change | Problem #7 |
Jab Kuch Bhi Kaam Na Kare
Upar ke sare steps try kar liye aur problem fix nahi hui? Tab technician bulao – lekin unhe yeh guide dikhao. Isse unhe problem diagnose karne mein time bachega aur aap blind trust ki jagah informed conversation kar sakte ho. Aur agar woh “CCA cable theek hai, same hota hai” bol rahe hain – ab aap jaante ho woh sach nahi bol rahe.
The JUAA Verdict
90% Problems.
3 Root Causes.
CCTV problems trace back to three things almost every time – poor cable quality, loose connections, and wrong settings. Cable fix karo, connections tighten karo, settings verify karo. Zyada complicated nahi hai – bas sahi order mein diagnose karna hota hai.
Cable Problem Permanently Fix Karo

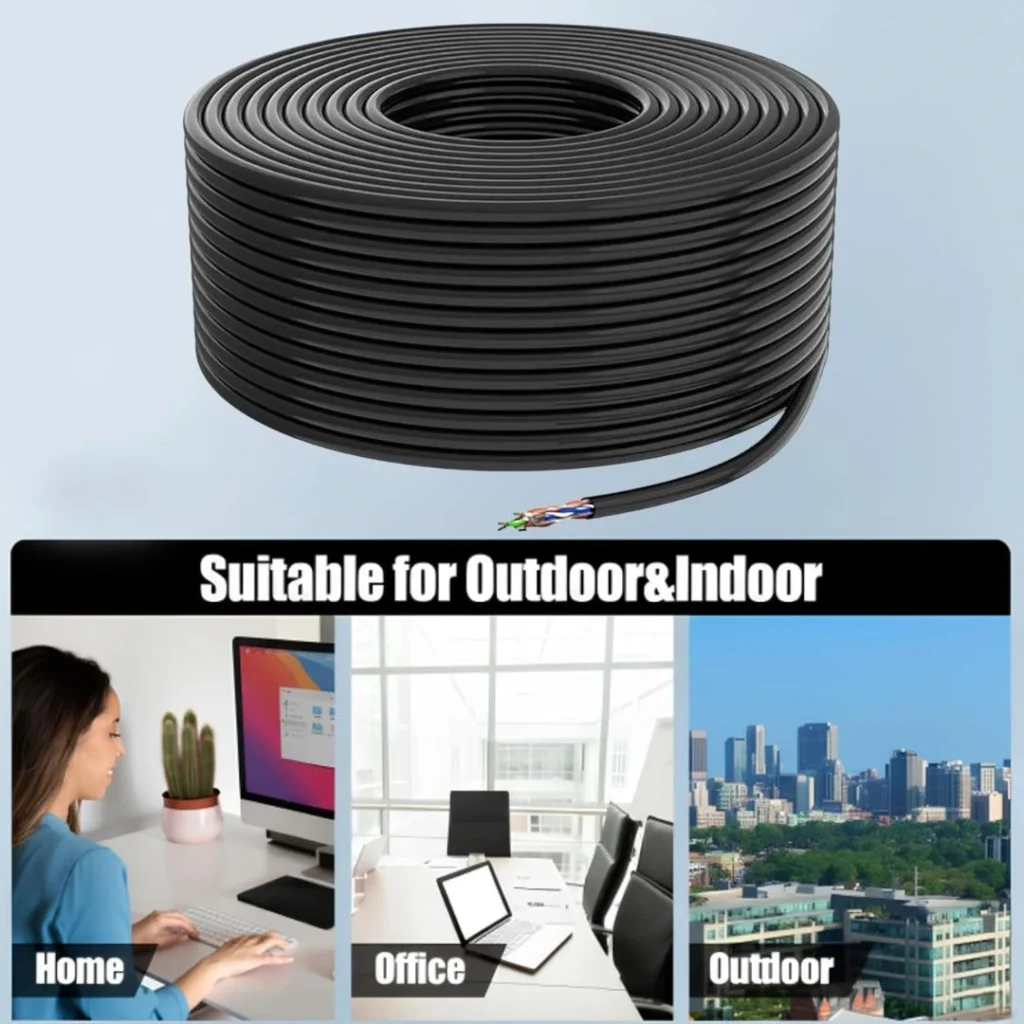

JUAA Pure Copper Cables – jo problems CCA cable ki wajah se hain, woh dobara nahi aayengi.
